ARES
NEW
- overview
- specifications
- technology

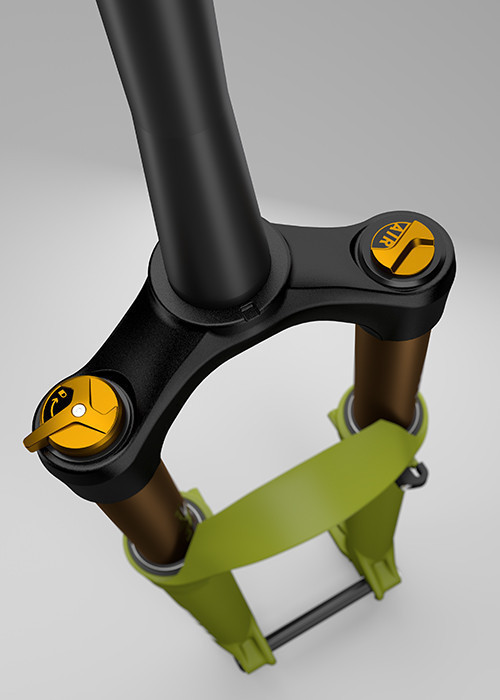

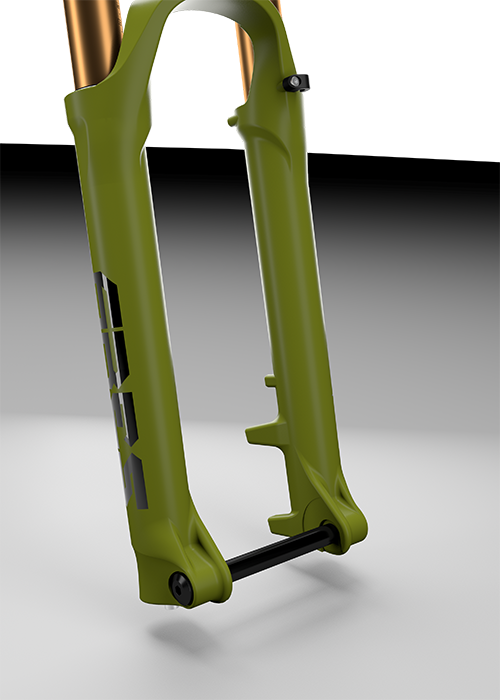

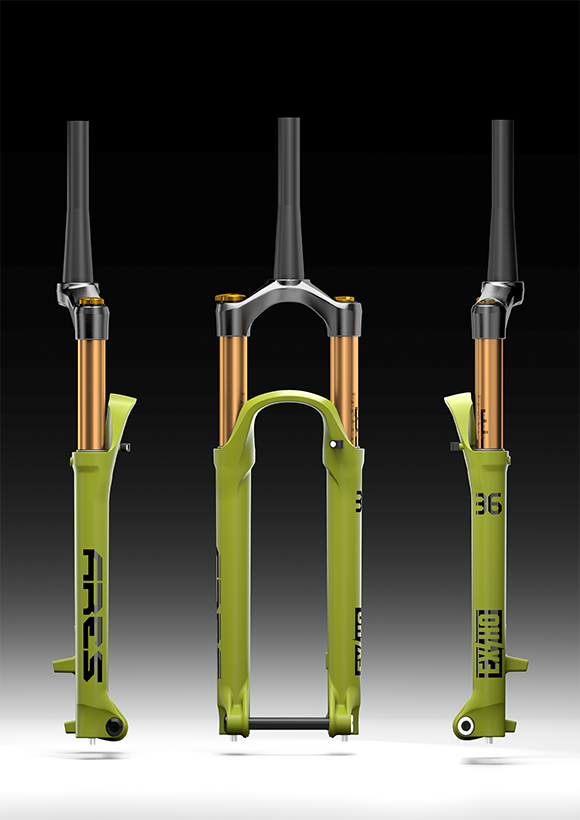

Magnesium alloy lower leg, forged aluminum
crown; lightweight aviation-grade aluminum high-strength 36mm stanchion;
bearing-type sliding sleeve to improve the smoothness of the stanchion, newly
upgraded air suspension system, complete optional functions; with 2.8 inch
tire, easy to use It can cope with various complex road conditions freely and
is easy to maintain

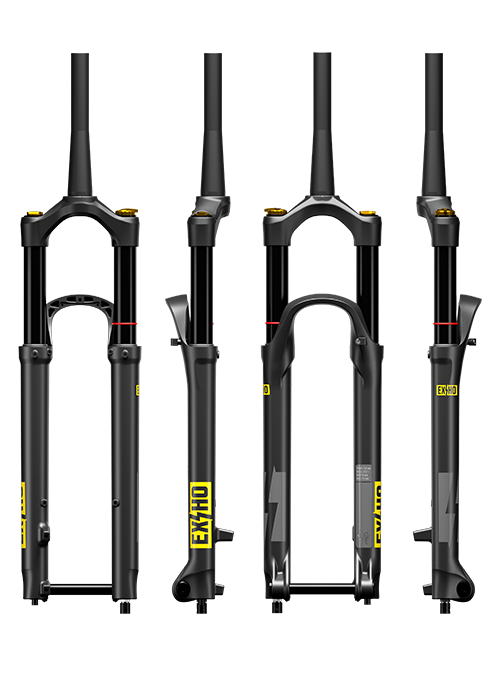

| MODEL: | A-TNL | A-TNL-R | A-RL | A-RL-R |
|---|---|---|---|---|
| STEERER | Aluminum 7075,Ø30(39.8)*28.6 | |||
| CROWN PITCH | Aluminum P145mm | |||
| CROWN | Aluminum | |||
| STANCHION | Aluminium- Ø36mm hard Anodize | |||
| CASTING | Magnesium 110*Ø15mm,Thru Axle | |||
| SPRING | Air | |||
| WHEEL SIZE | 27.5" 29" | |||
| TRAVEL | 100/120/140/160mm | |||
| BRAKE TYPE | Disc Brake 180/203mm | |||
- A: Air
- R: Rebound
- RL: Remote Lock-out
- TNL: Hydraulic Lock-out
