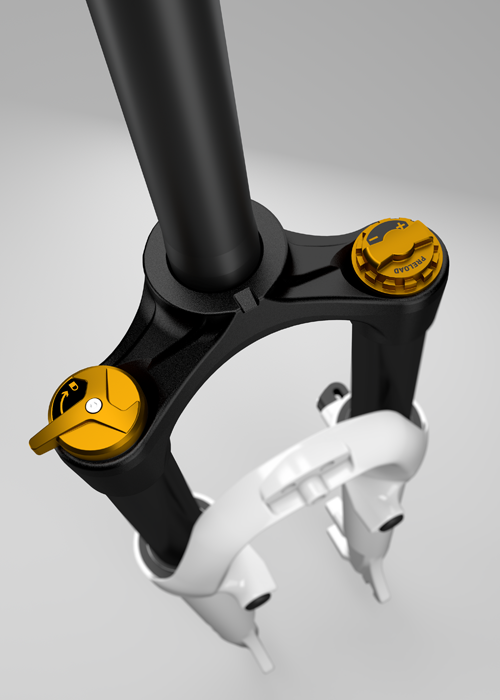

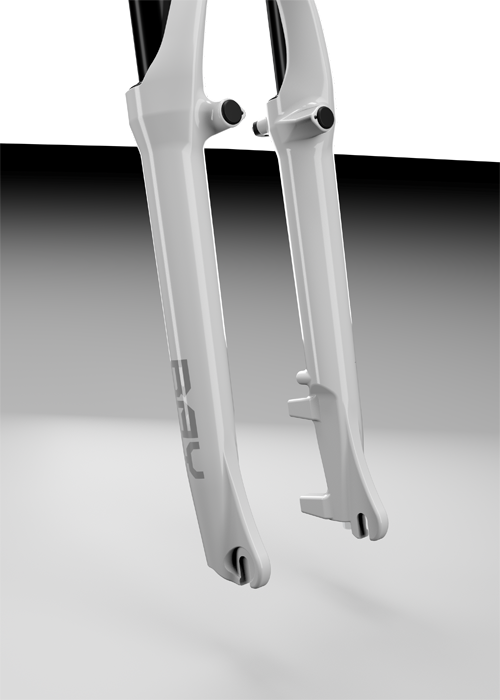

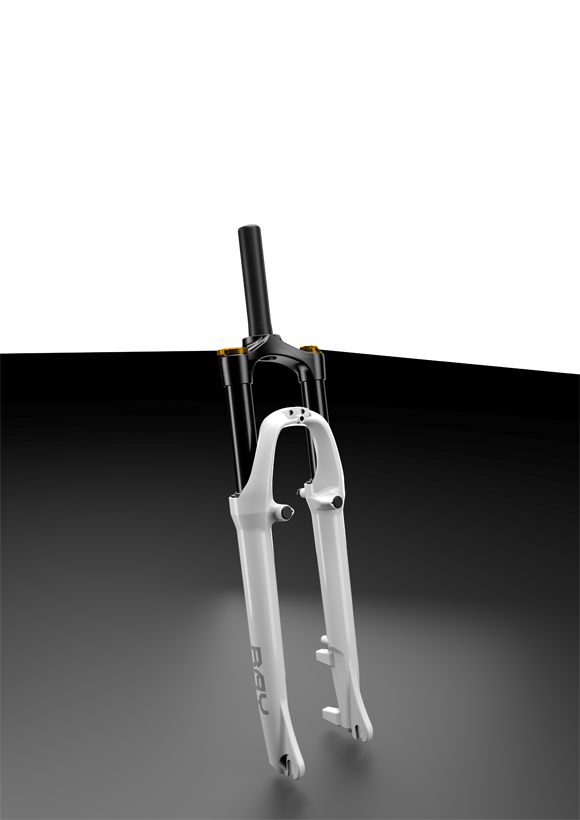

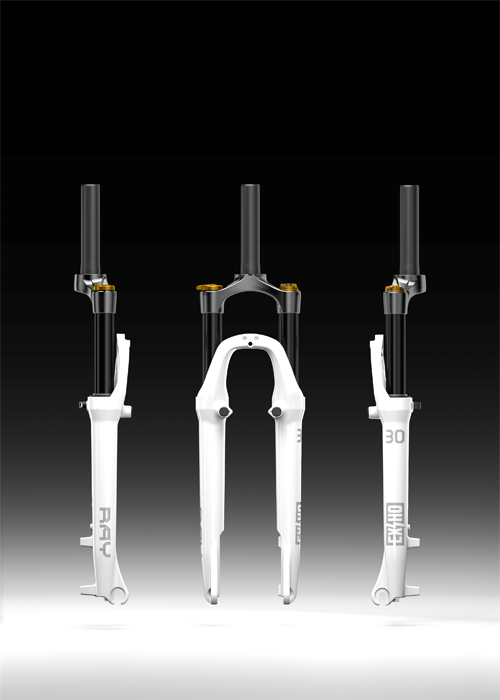

RAY bicycle fork for leisure sports city bicycle, Aluminum/Magnesium alloy lower leg + forged aluminum crown, 30mm stanchion, Air/ coil spring fork, center distance 116mm, can be matched with 700C tires, Suitable for urban roads, with optional preload adjust and mechanical lock-out.
| MODEL: | a-tnl | tnl-P | ML-P | P |
|---|---|---|---|---|
| STEERER | Aluminium/Steel 30（39.8）*28.6*25.4mm | |||
| CROWN PITCH | P116mm | |||
| CROWN | Aluminum | |||
| STANCHION | Aluminium /30mm Hard Anodize / Steel-Ø30mm CP/QPQ | |||
| CASTING | Aluminium/Magnesium Open Dropout 100*/9.8mm | |||
| SPRING | Air Spring / Coil w/P | |||
| WHEEL SIZE | 700C | |||
| TRAVEL | 60/80mm | |||
| BRAKE TYPE | Disc & V-brake | |||
MAX TIRE | 2.0 Inch | |||
- A: Air spring
- TNL: Hydraulic Lock-out
- P: Preload Adjuster
- ML: Mechanical Lock-out
