CASTOS-DH
NEW
- overview
- specifications
- technology

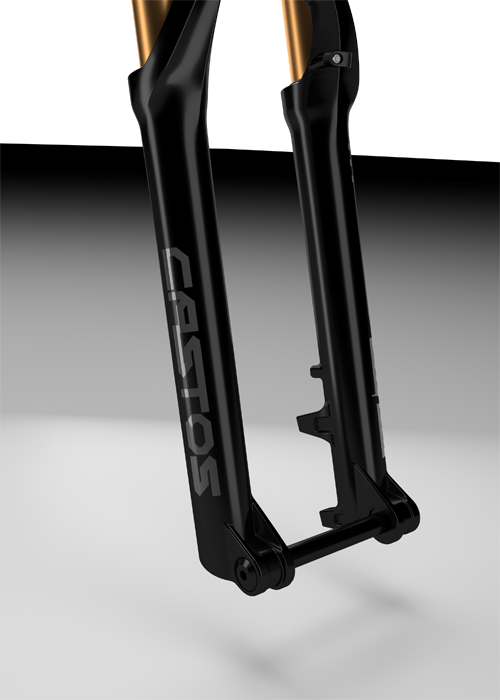

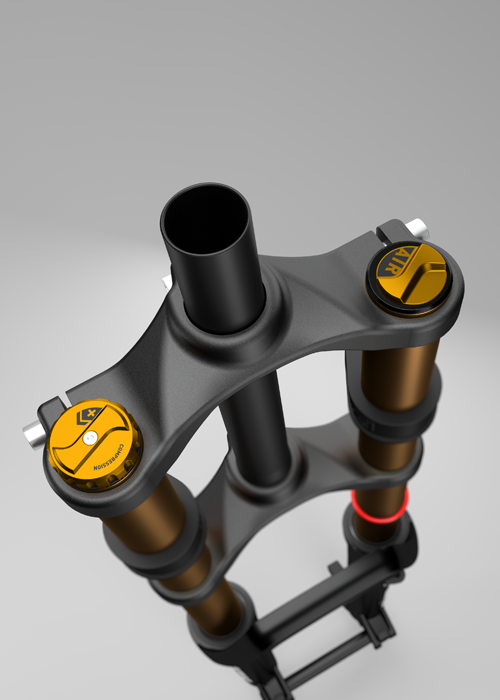

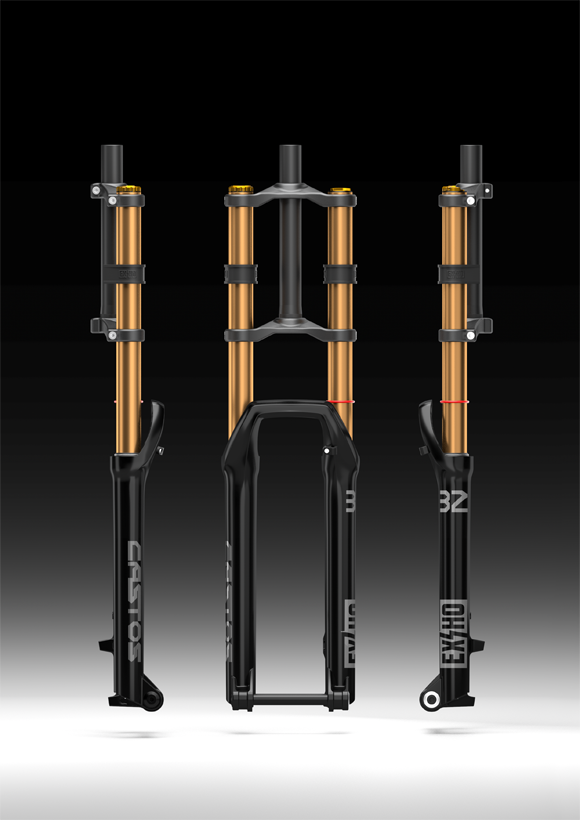

Suitable for leisure and lightweight
high-performance mountain bikes, magnesium alloy lower leg + forged aluminum
crown; high-strength and lightweight aviation-grade aluminum 32mm stanchion,
bearing-type sliding sleeve, improve the smoothness of the stanchion; newly
upgraded air pressure shock absorber system with 2.4inch tire , open dropout 100mm, travel 80-120mm.
| MODEL: | A-TNL | A-tnl-R | TNL-R | TNL-P |
|---|---|---|---|---|
| STEERER | Aluminium 7075/Steel Ø30*28.6 | |||
| CROWN PITCH | P130mm | |||
| CROWN | Aluminum | |||
| STANCHION | Aluminium-Ø32mm hard Anodize Steel-/32mmCP/QPQ | |||
| CASTING | Magnesium open dropout 100*Ø9.8mme (*Thru axle 100*15mm) | |||
| SPRING | Air Spring Coil Spring | |||
| WHEEL SIZE | 26“ 27.5“ 29“ (*27.5" 29") | |||
| TRAVEL | 80/100/120/140mm | |||
| BRAKE TYPE | Disc Brake "26"27.5"160/180mm, 29"180/203mm | |||
MAX TIRE | 2.4 Inch | |||
- A: Air
- R: Rebound
- TNL: Hydraulic Lock-out
- P: Preload Adjuster
