ALSTON-DH
NEW
- overview
- specifications
- technology

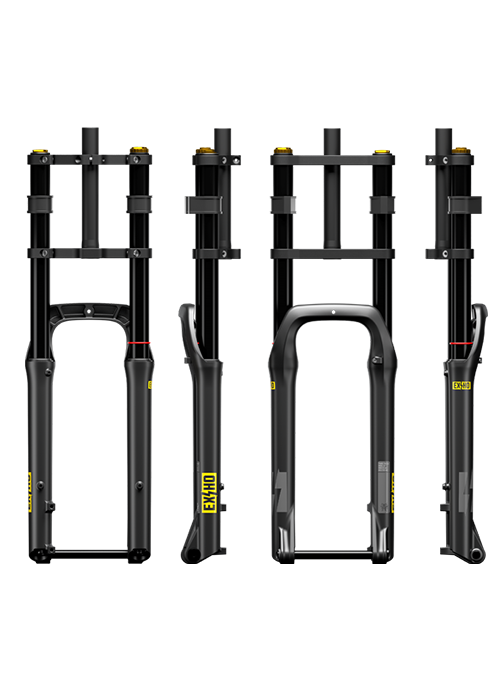

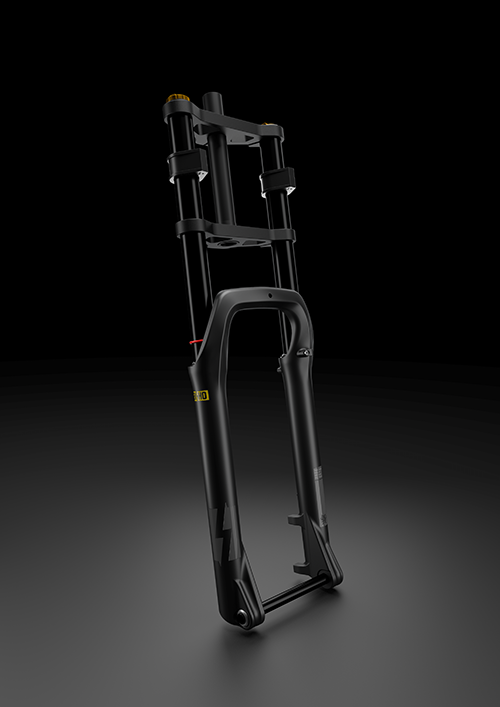

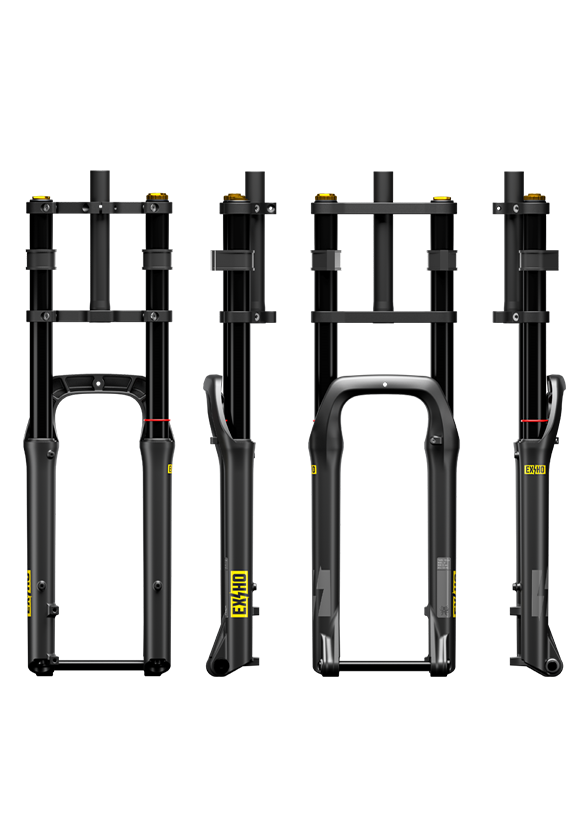

fat bike double crown fork, aluminum alloy
lower leg with 4.0 inch tire, excellent shock absorption performance; optional
air suspension fork and coil spring fork, air fork is lightweight
aviation-grade aluminum 34mm stanchion, coil spring fork with high carbon Steel
34mm stanchion; optional hydraulic lock-out/ coil spring suspension, fork specifications 20/24/26 inch.
| MODEL: | A-TNL | A-R | TNL-P | P |
|---|---|---|---|---|
| STEERER | Aluminium/SteelØ30*28.6 | |||
| CROWN PITCH | P171mm | |||
| CROWN | Aluminum | |||
| STANCHION | Aluminium-Ø34mm hard Anodize | Steel-Ø34mm CP/QPQ | ||
| CASTING | Aluminium135*Ø15mmThru Axle | Aluminium 135*Ø15mm Thru Axle | ||
| SPRING | Air | Coil w/P | ||
| WHEEL SIZE | 20" 24" 26" | |||
| TRAVEL | 100/120/140mm | |||
| BRAKE TYPE | Disc Brake 160/180mm | |||
| MAX TIRE | 4.0 Inch | |||
- A: Air
- R: Rebound
- P: Preload Adjuster
- TNL: Hydraulic Lock-out
