STRONG-DH
NEW
- overview
- specifications
- technology

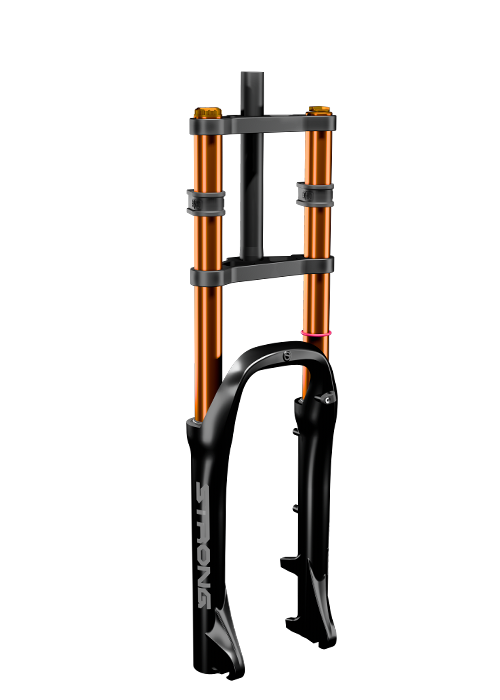

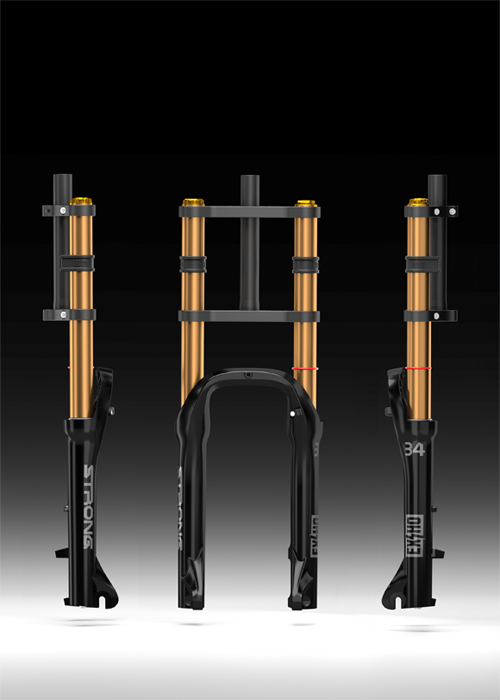

fat bike double-crown fork, forged aluminum crown + 4.0 inch tire, excellent shock absorption; optional air suspension fork and coil spring fork, air fork lightweight magnesium and aviation-grade aluminum 34mm stanchion , coil spring fork Equipped with high carbon steel 34mm stanchion; hydraulic lock-out/coil spring suspension can be optional.
| MODEL: | A-TNL | A-R | TNL-P | P |
|---|---|---|---|---|
| STEERER | Aluminium/SteelØ30*28.6 | |||
| CROWN PITCH | P171mm | |||
| CROWN | Aluminum | |||
| STANCHION | Aluminium-Ø34mm hard Anodize | Steel-Ø34mm CP/QPQ | ||
| CASTING | Magnesium open dropout 135*Ø10.2mm | Aluminium open dropout 135*Ø10.2mm | ||
| SPRING | Air | Coil w/P | ||
| WHEEL SIZE | 20" 26" | |||
| TRAVEL | 120/140mm | |||
| BRAKE TYPE | Disc Brake 160/180mm | |||
| MAX TIRE | 4.0 Inch | |||
- A: Air
- R: Rebound
- P: Preload Adjuster
- TNL: Hydraulic Lock-out
