STRIDE
NEW
- overview
- specifications
- technology

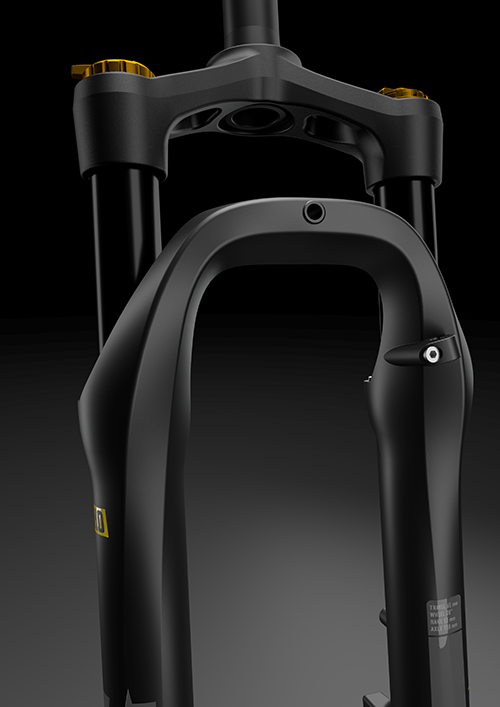

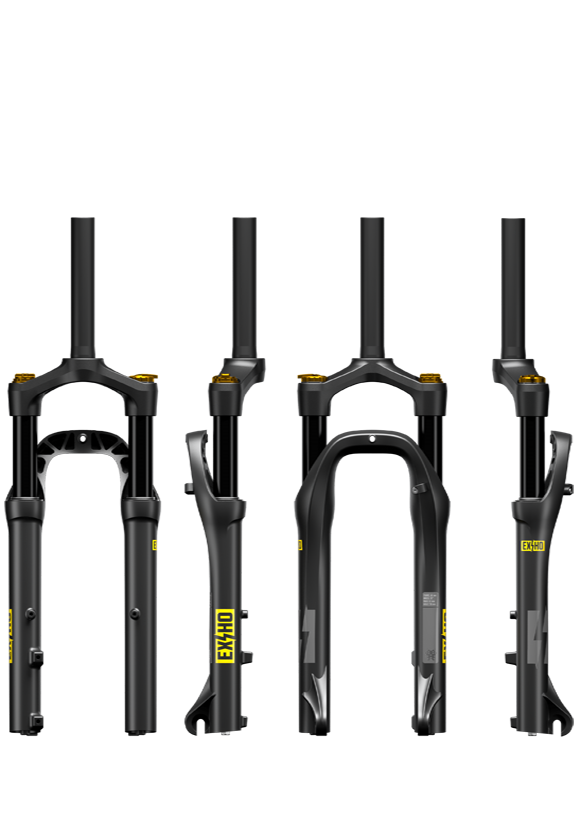

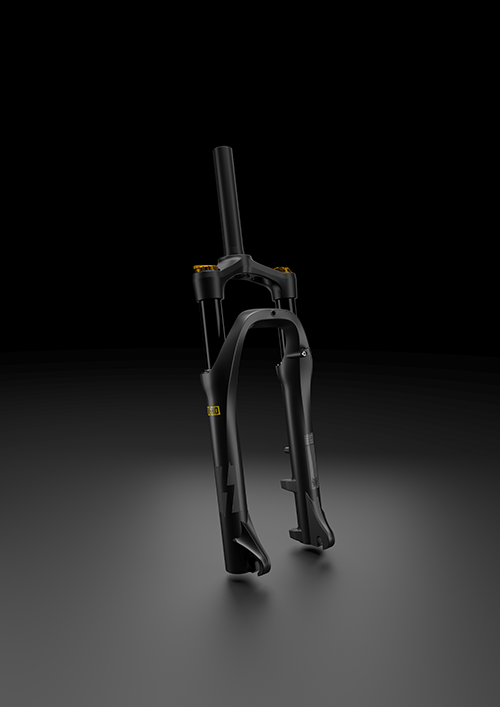

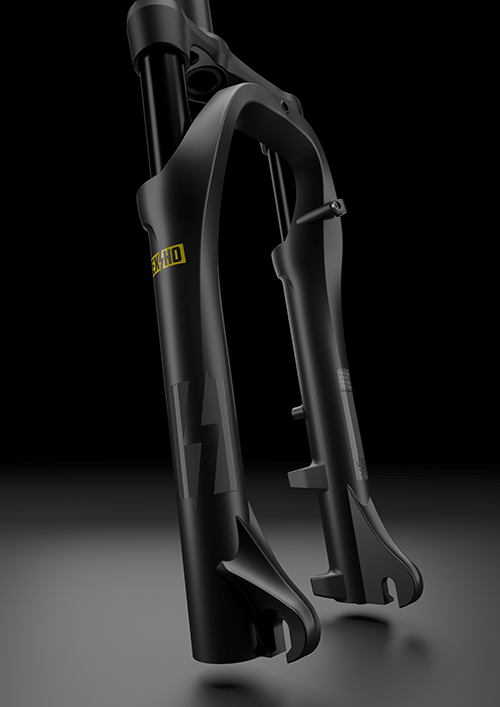

Suitable for high-performance mountain
bikes, aluminum alloy lower leg combined with forged aluminum crown, 30mm
diameter high carbon steel stanchion, complete optional functions; equipped
with 3.0 inch tire, 110mm-open dropout. can be used as high-end 32 mm aluminum
stanchion air suspension fork.
| MODEL: | ML-P | TNL-P | RL-P | ||
|---|---|---|---|---|---|
| STEERER | Aluminium/Steel Ø30*28.6 | ||||
| CROWN PITCH | P140mm | ||||
| CROWN | Aluminum | ||||
| STANCHION | Steel-Ø30/32mm CP/QPQ | ||||
| CASTING | Magnesium open dropout 110*Ø10.2mm | ||||
| SPRING | Coil w/P | ||||
| WHEEL SIZE | 20" | ||||
| TRAVEL | 90mm | ||||
| BRAKE TYPE | Disc Brake 160/180mm | ||||
| MAX TIRE | 3.0 Inch | ||||

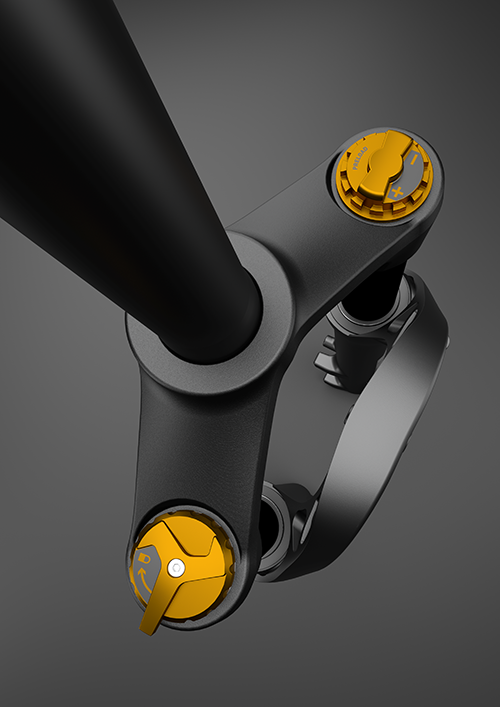

- P: Preload Adjuster
- RL: Remote Lock-out
- TNL: Hydraulic Lock-out
- ML: Mechanical Lock-out
