ALSTON-15
NEW
- overview
- specifications
- technology

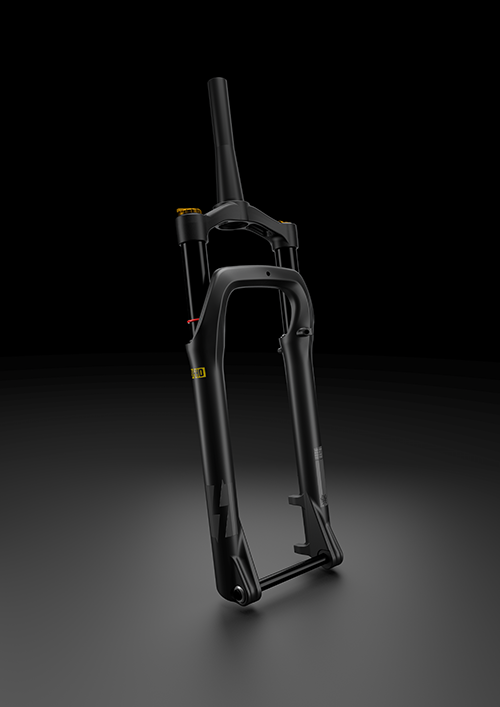

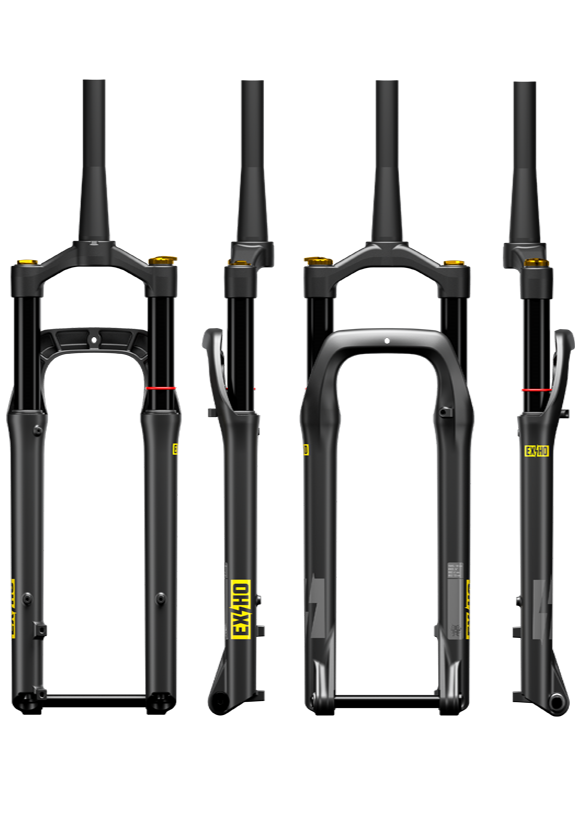

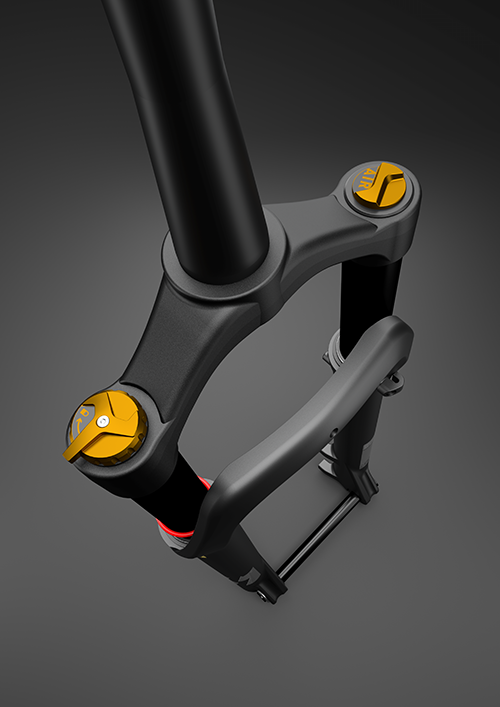

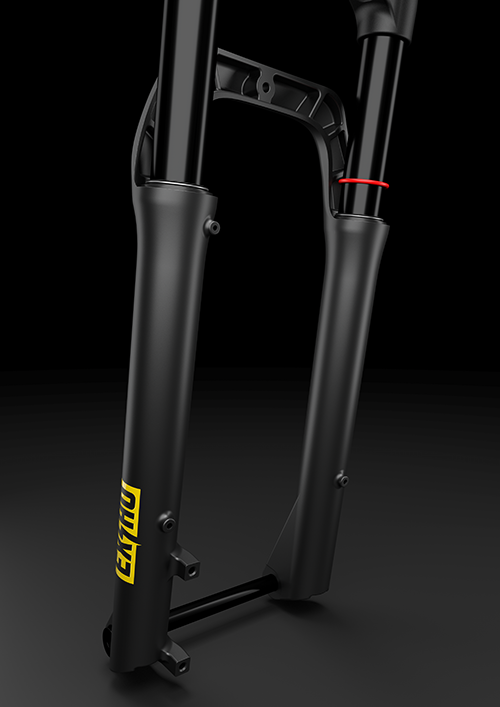

fat bike fork, aluminum alloy lower leg +
forged aluminum crown + 4.0 inch tire, good shock absorption performance;
optional air fork/coil spring fork, air fork lightweight aviation-grade
aluminum 34mm stanchion , coil spring fork with High carbon steel 34mm
stanchion; optional hydraulic lock-out /damping adjust.
| MODEL: | A-TNL | A-RL | ML-P | TNL-P | P |
|---|---|---|---|---|---|
| STEERER | Aluminium/SteelØ30(39.8)*28.6 | ||||
| CROWN PITCH | P171mm | ||||

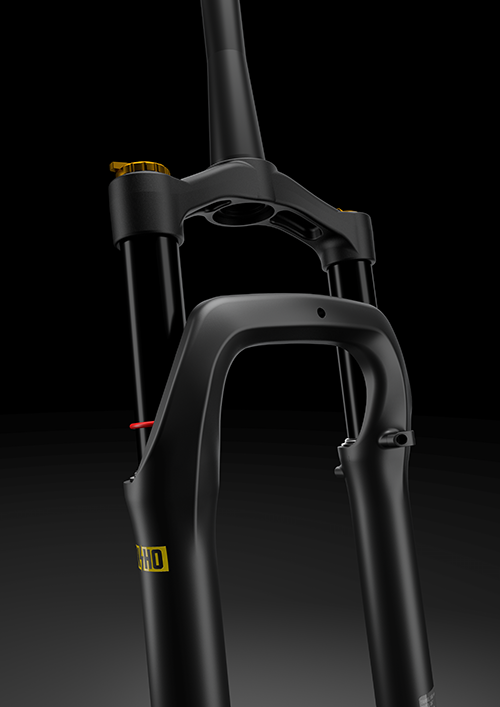

| CROWN | Aluminum | ||||
| STANCHION | Aluminium- Ø34mm hard Anodize | Steel-Ø34mm CP/QPQ | |||

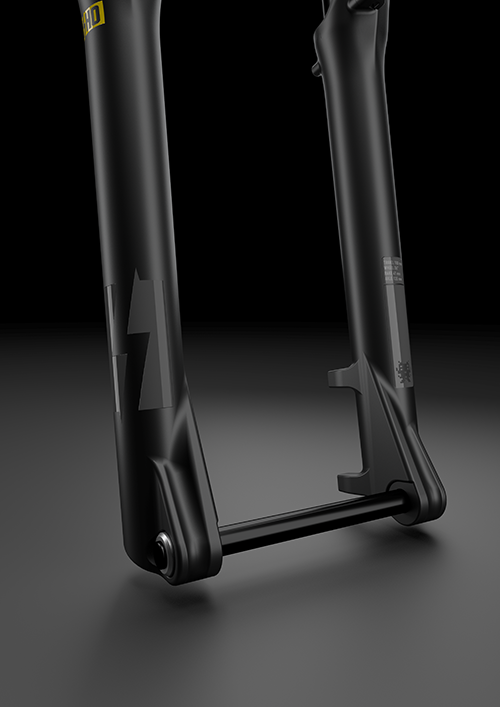

| CASTING | Aluminium 135*Ø15mm Thru Axle | ||||
| SPRING | Air | Coil w/P | |||
| WHEEL SIZE | 20" 24" 26" | ||||
| TRAVEL | 80/100/120mm | ||||
| BRAKE TYPE | Disc Brake 160/180mm | ||||
| MAX TIRE | 4.0 Inch | ||||
- A: Air
- P: Preload Adjuster
- RL: Remote Lock-out
- TNL: Hydraulic Lock-out
- ML: Mechanical Lock-out
