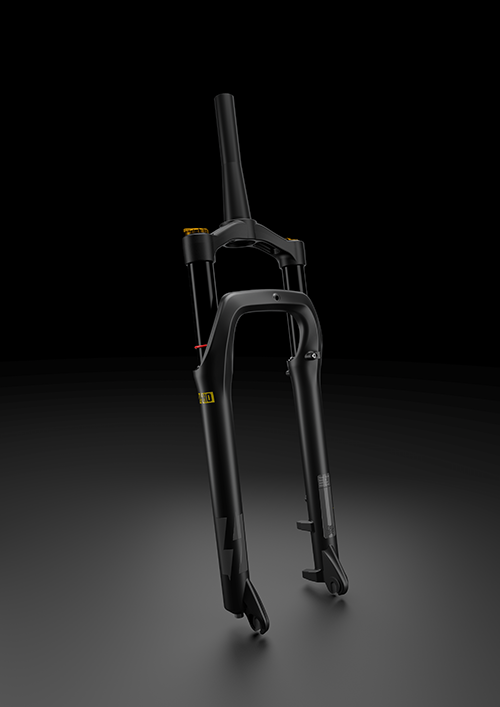

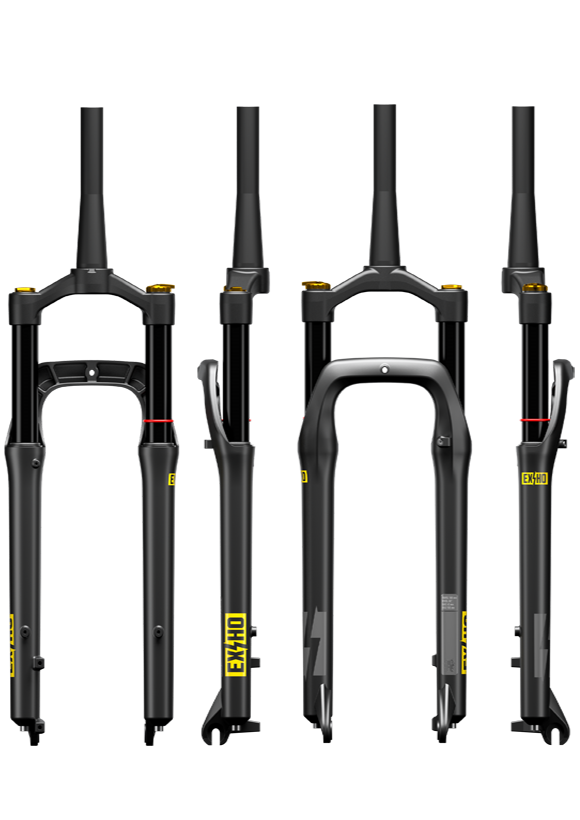

fat bike fork, aluminum alloy lower leg +
forged aluminum crown for 4.0 inch tire,
excellent shock absorption performance; optional air fork/coil spring fork, air
fork with diameter 34mm stanchion, lightweight aviation-grade aluminum alloy ,
spring fork Equipped with high carbon steel 34mm stanchion;
mechanical/hydraulic/wire control lock-out can be freely selected.
| MODEL: | A-TNL | A-RL | ML-P | TNL-P | P |
|---|---|---|---|---|---|
| STEERER | Aluminium/SteelØ30(39.8)*28.6 | ||||
| CROWN PITCH | P171mm | ||||
| CROWN | Aluminum | ||||
| STANCHION | Aluminium- Ø34mm hard Anodize | Steel-Ø34mm CP/QPQ | |||

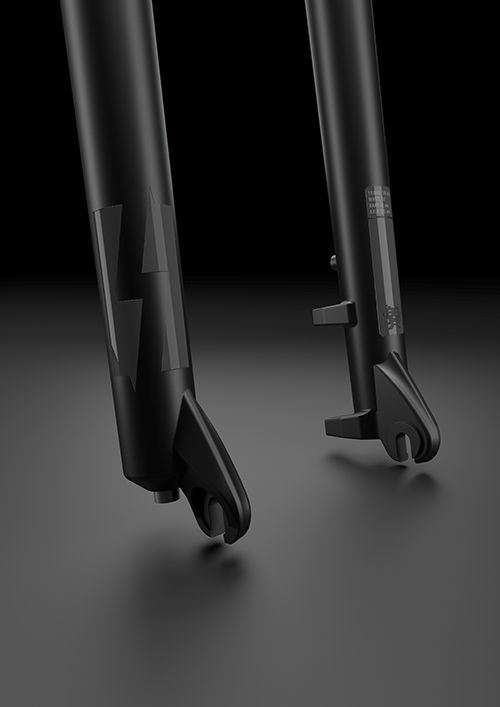

| CASTING | Aluminium Open dropout 135*Ø10.2mm | ||||
| SPRING | Air | Coil w/P | |||
| WHEEL SIZE | 20"26" | ||||
| TRAVEL | 80/100/120mm | ||||
| BRAKE TYPE | Disc Brake 160/180mm | ||||
| MXA TIRE | 4.0 Inch | ||||
- A: Air
- P: Preload Adjuster
- RL: Remote Lock-out
- TNL: Hydraulic Lock-out
- ML: Mechanical Lock-out
