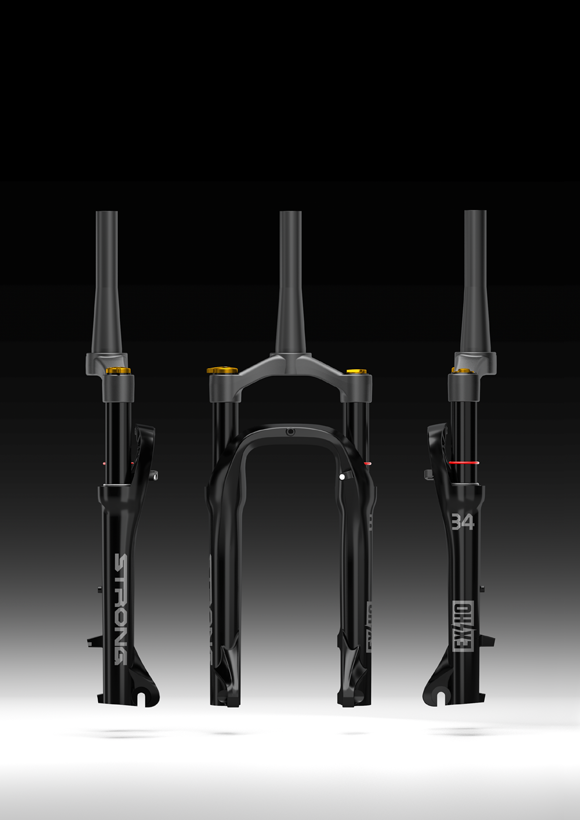

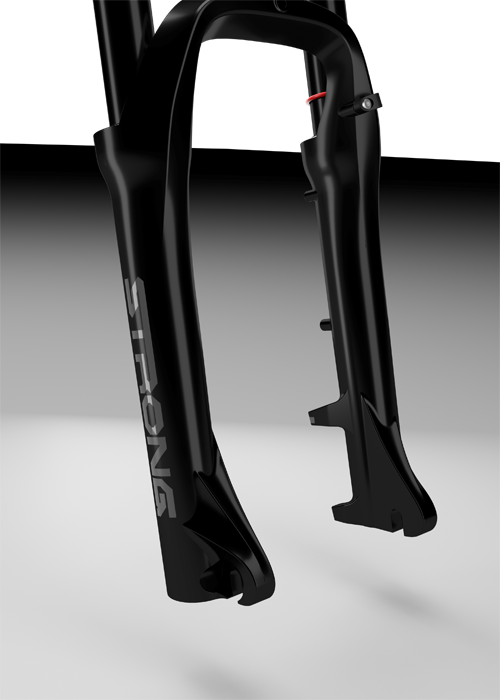

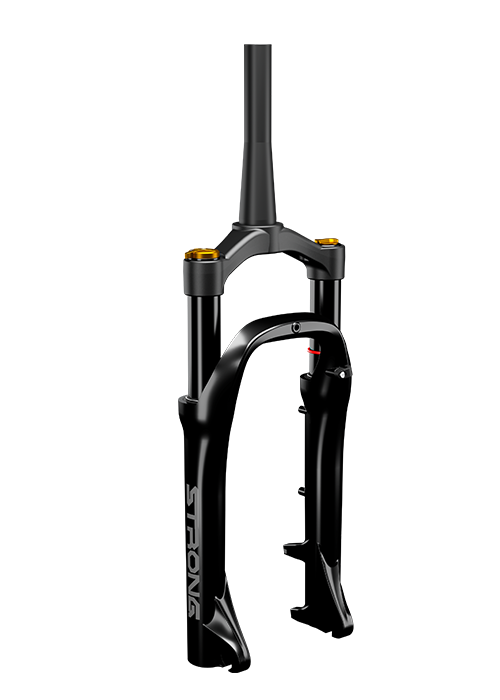

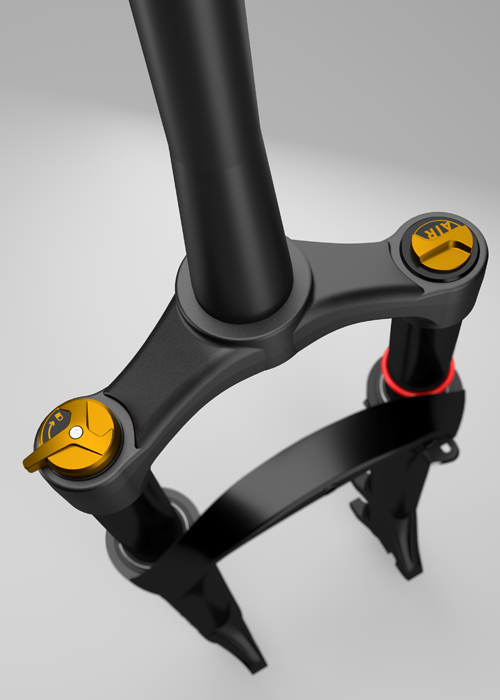

Fat bike fork, forged aluminum crown with 4.0 inch tire, superior shock absorption;
optional air fork and coil spring fork, air suspension fork with diameter 34mm,
high-strength, lightweight aviation-grade aluminum stanchion; coil spring fork
with high carbon Steel 34mm stanchion, mechanical/hydraulic/wire control
lock-out can be freely selected.
| MODEL: | A-TNL | A-RL | ML-P | TNL-P | P |
|---|---|---|---|---|---|
| STEERER | Aluminum 7075,Ø30(39.8)*28.6 | ||||
| CROWN PITCH | P171mm | ||||
| CROWN | Aluminum | ||||
| STANCHION | Aluminium- Ø34mm hard Anodize |
Steel-Ø34mm CP/QPQ |
|||
| CASTING | Magnesium open dropout 135*Ø10.2mm |
Aluminium open dropout 135*Ø10.2mm |
|||
| SPRING | Air | Coil w/P | |||
| WHEEL SIZE | 20" 26" | ||||
| TRAVEL | 80/100/120mm | ||||
| BRAKE TYPE | Disc Brake 160/180mm | ||||
| MAX TIRE | 4.0 Inch | ||||
- A: Air
- P: Preload Adjuster
- RL: Remote Lock-out
- TNL: Hydraulic Lock-out
- ML: Mechanical Lock-out
